Air supply | Vertical airflow | |
Model | PCR-600 | PCR-800 |
Cleanliness grade | Class 100 | |
Number of colonies | ≤0.5pcs/dish-hour(Ø90mm culture dish) | |
Average wind speed | 0.25-0.45m/s | |
Noise | ≤62dB | |
Power supply | AC single phase 110v/220v | |
Vibration | ≤0.5ɥM | |
Illumination | ≧300LX | |
Max power | 800W | 900W |
Dimension of working area(W*D*H)mm | 580*500*450 | 780*500*450 |
Overall dimension | 600*550*840 | 800*550*840 |
Filter | 510*405*50 | 715*405*50 |
Fluorescent lamp/ UV lamp | 5W/10W | 5W/10W |
Applicable persons | Single person | Double person |

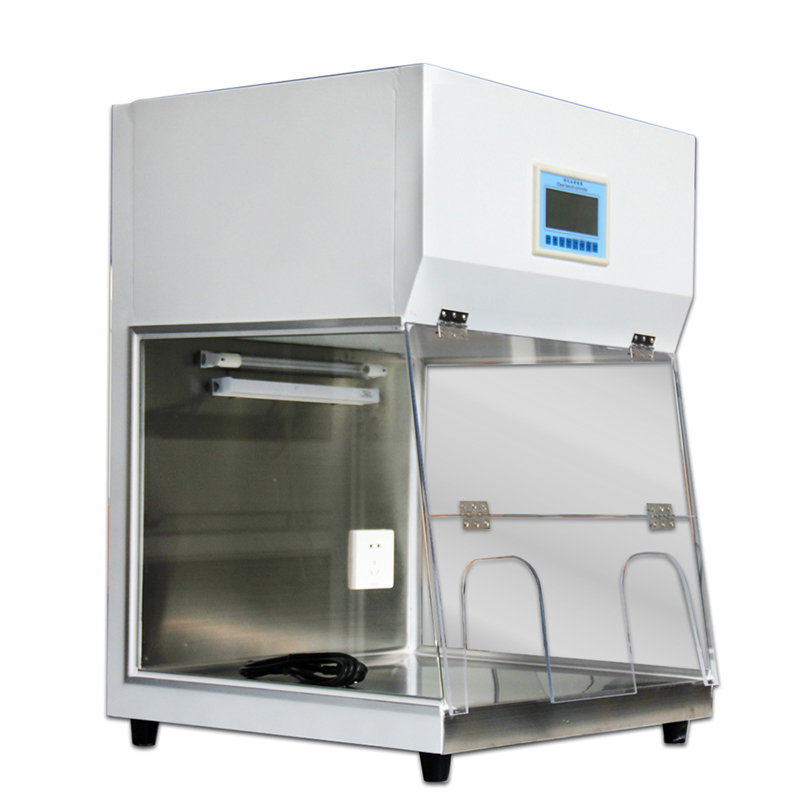

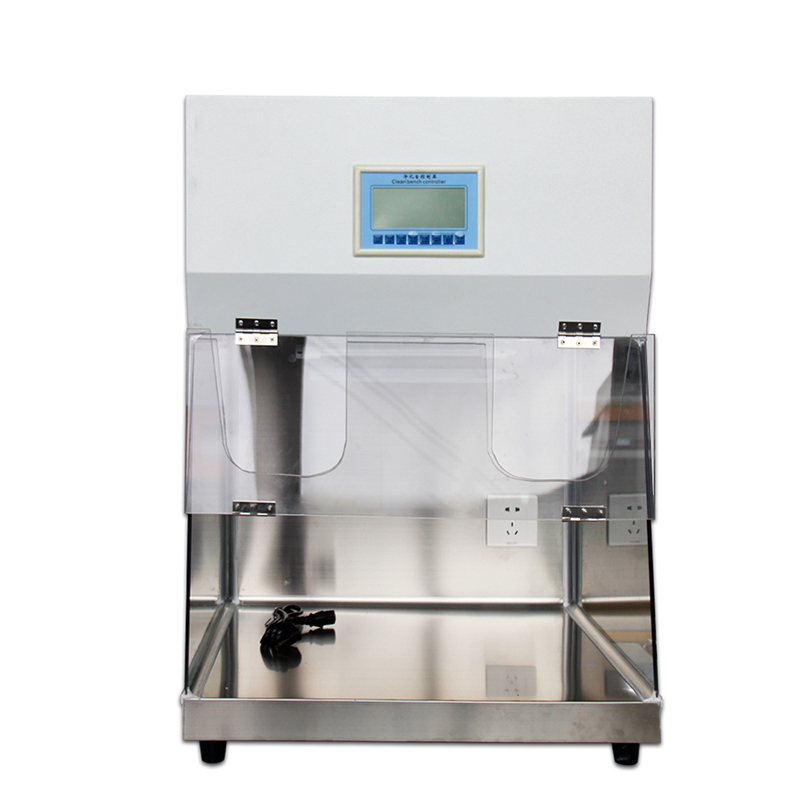

PCR super laminar flow cabinet majorly contains cabinet,fan,filter and operation system.
1.The PCR hood extract air from room, the air will pass through filter system and flow to operation area to form a clean area.
2. It includes a HEPA system which provide a continuous clean air area.
3. the working area can place tubes support,centrifuge and thermal circulator etc.
4. the front top adopts 10℃ tilting design, easy to have operation.
5.close-loop operation table, front window can be closed totally,effectively prevent the external gas.
6.Intelligent PID controller with blue screen,digital display the values.
7.stainless steel workbench, easy to clean.
8.light and UV interlock function,backup outlet.
9.high efficiency HEPA filter integrated design.
10.flexible front glass window, sides transparent window design.
