Technical Parameters | ||||
Name | laminar flow cabinet(bench top type) | |||

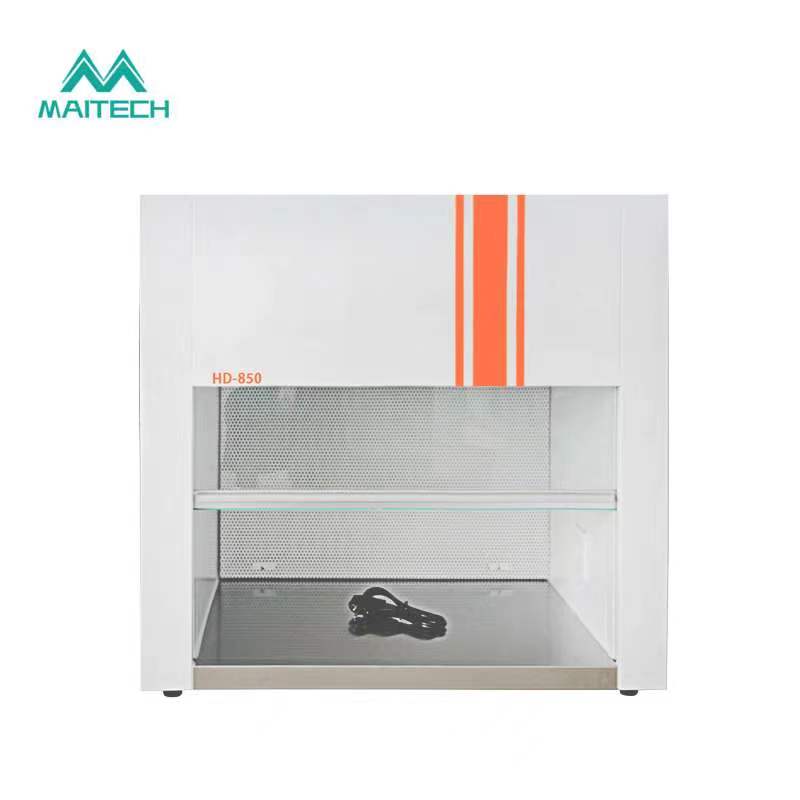

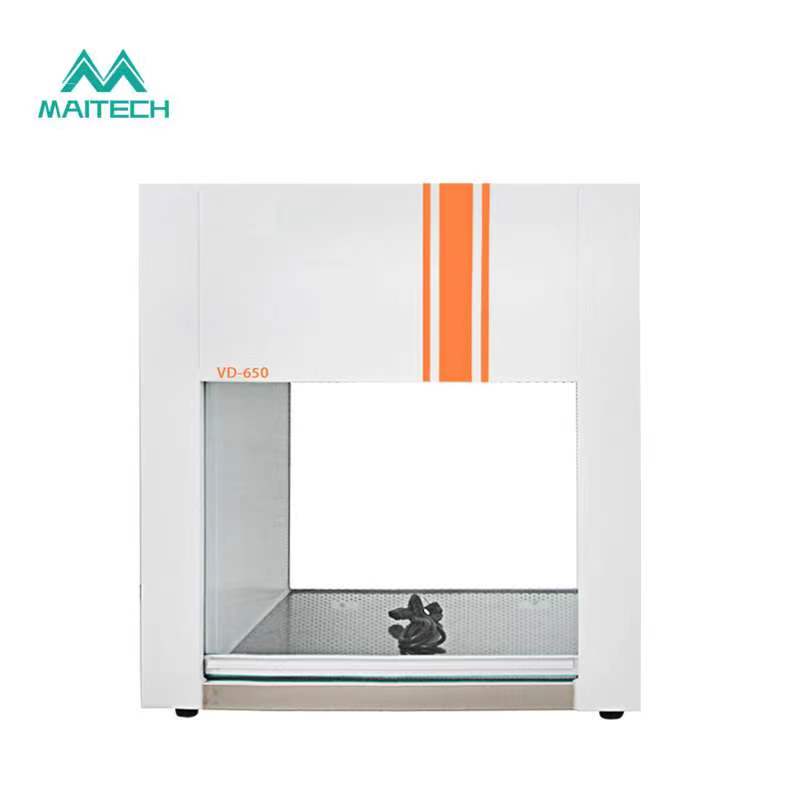

Model | VD-650 | VD-850 | HD-650 | HD-850 |
Clean grade | Grade 100(209EU.S. Federal) | |||
Number of bacteria | <0.5per utensil.hour(90mm utensi1) | |||
Noise | <62dB | |||
Power supply | AC,220V/50Hz | |||
Fan speed | 0.25-0.45m/s | |||
Dimension of working area | 485*475*455 | 685*475*455 | 485*385*455 | 685*385*455 |
Overall dimension | 640*530*845 | 840*530*845 | 640*530*845 | 840*530*845 |
Fluorescent light/UV light | 8W*1/10W*1 | |||
Specification and number | 480*460*38 | 680*460*38*1 | 480*460*38*1 | 680*480*38*1 |
Class 100 Desktop mini laminar flow hood is a local purification unit used in the aseptic and dust-free clean environment in the fields of medical and health, biological engineering, scientific experiment and so on.
Main characters
1. The whole equipment adopts cold-rolled plate welding, and the surface is
electrostatic sprayed.
2. The air supply mode of the equipment is divided into vertical air supply and
horizontal air supply, quasi-closed glass damper, which is easy to operate.
3. Small and exquisite, it can be freely placed on the general workbench for operation,
which is convenient for use in small studios.
4. The fan system is controlled by a remote switch fast and slow dual speed to ensure
that the wind speed in the work area is always in an ideal state.
