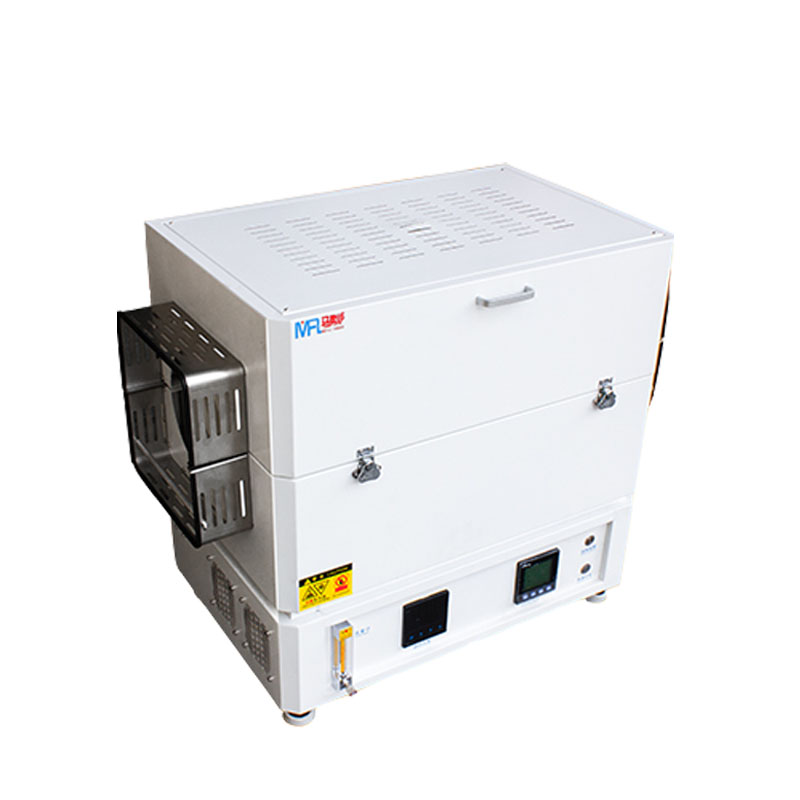

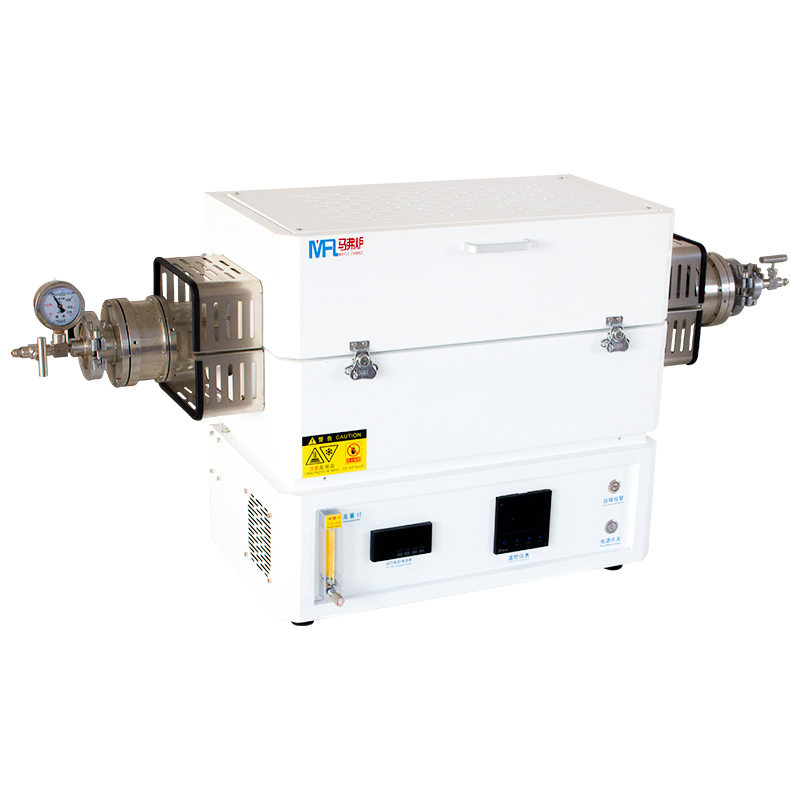

Muffle furnace
1.The tubular furnace adopts intelligent instrument and multi-stage temperature control
2.With open door power off, over temperature alarm, leakage protection, over temperature protection functions
3.Alloy handle, metal latch, tight closure
4.Display current and voltage values in real time
5.Switch alarm light to ensure safety test
6.Multiple ventilation and cooling to prevent overheating of the furnace table
7.Axial fan, fast exhaust, smooth operation
Model | MFLB-50 | MFLB-60 | MFLB-80 | MFLB-100 | MFLB-120 | MFLB-150 |
Temp.range And resolution | 50-1200℃,Max temp.:≤1200℃,working temp.:≤1100℃ <1000±0.1℃, ≥1000±1℃ | |||||
Temp.performance | Fluctuation:±1℃, uniformity: ±3℃ | |||||
Temp.up rate | At 1000℃ or less ≤10℃/min, no overpass 30℃/min | |||||
Temp.down rate | At 700℃ or more ≤10℃/min | |||||
Structure | cold-rolled steel outside,drug resistant painted Ceramic fiber chamber inside K type temperature couple, axial fan. HRE resistance alloy wire heater Double layers structure, equipped with air cooling system | |||||
Control system | Digital PID control,fixed running or programmable Bias correction,outage compensation,lock function Timer:1-99hour59min or 1-999hours | |||||
Safety | Cut off automatically when open the door Over temperature alarm Leakage protection | |||||
Voltage | AC220V 50Hz | |||||
Heat area (D*W*H)mm | 400*50 | 400*60 | 400*80 | 400*100 | 400*120 | 400*150 |
Exterior size (D*W*H)mm | 350*650*605 | 350*650*605 | 350*650*605 | 350*650*605 | 410*850*670 | 410*850*670 |
Tube size(Ø) | 50 | 60 | 80 | 100 | 120 | 150 |
Weight (kg) | 53 | 55 | 58 | 60 | 75 | 80 |
Power (KW) | 3 | 3 | 3 | 3 | 4 | 5.2 |
