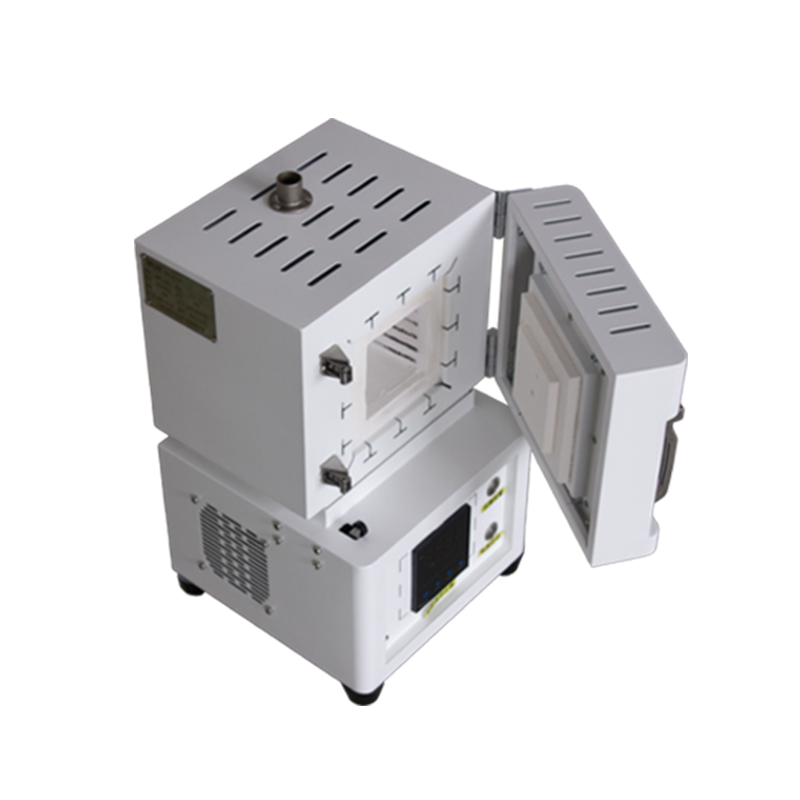

Muffle furnace is often used for: small steel processing, sintering of cermet, dissolution analysis and high temperature heating

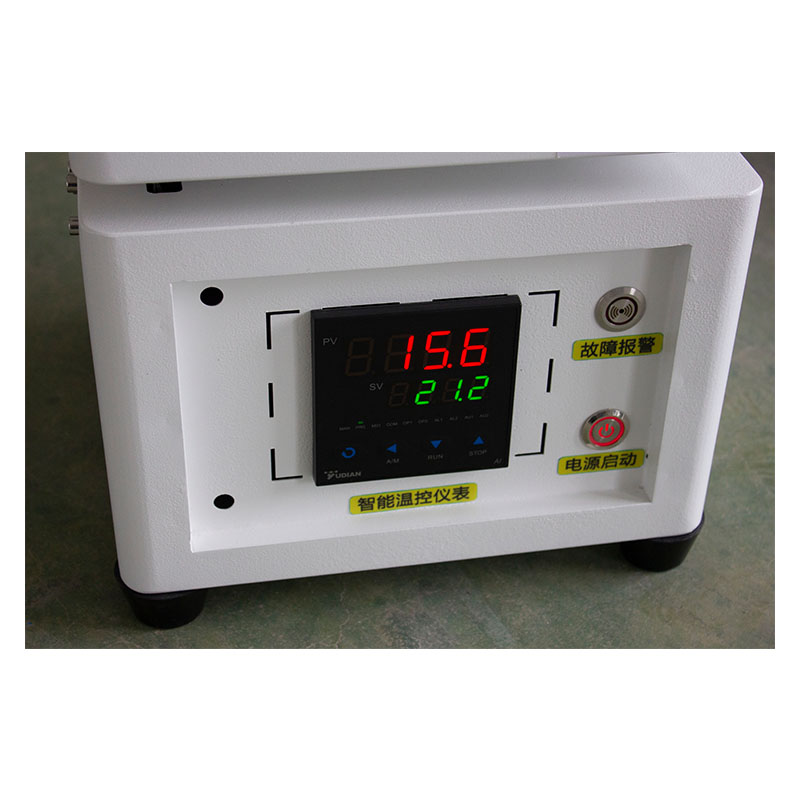

This product uses high performance temperature control instrument, 50 section temperature control adjustment, easy to operate, clear display and easy reading.
Multiple ventilation cooling prevents overheating of the furnace surface.

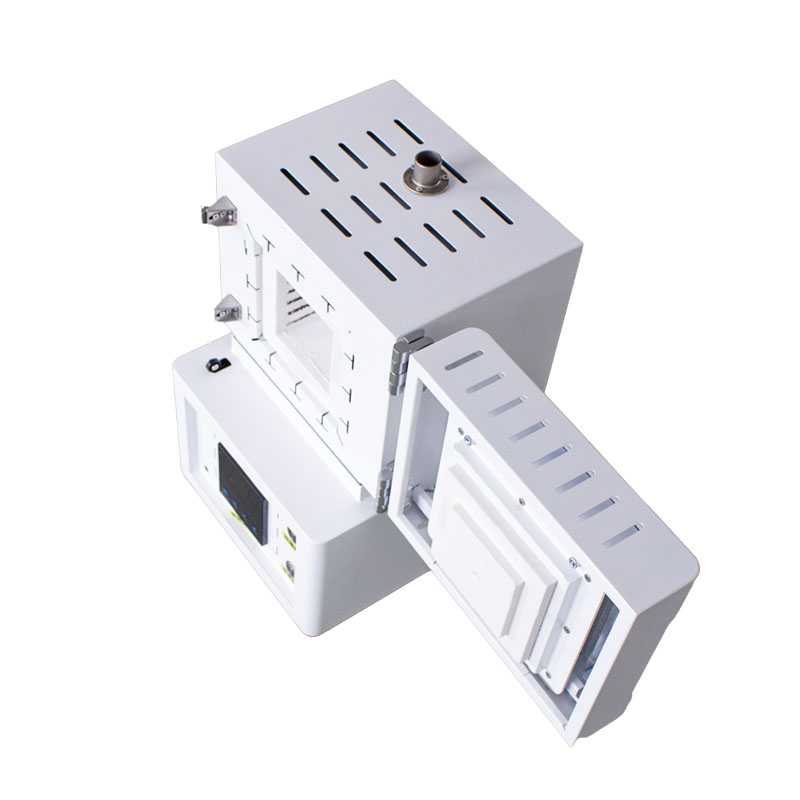

The furnace door is hinged, opening and closing smoothly, and can be rotated 180 degrees flexibly.

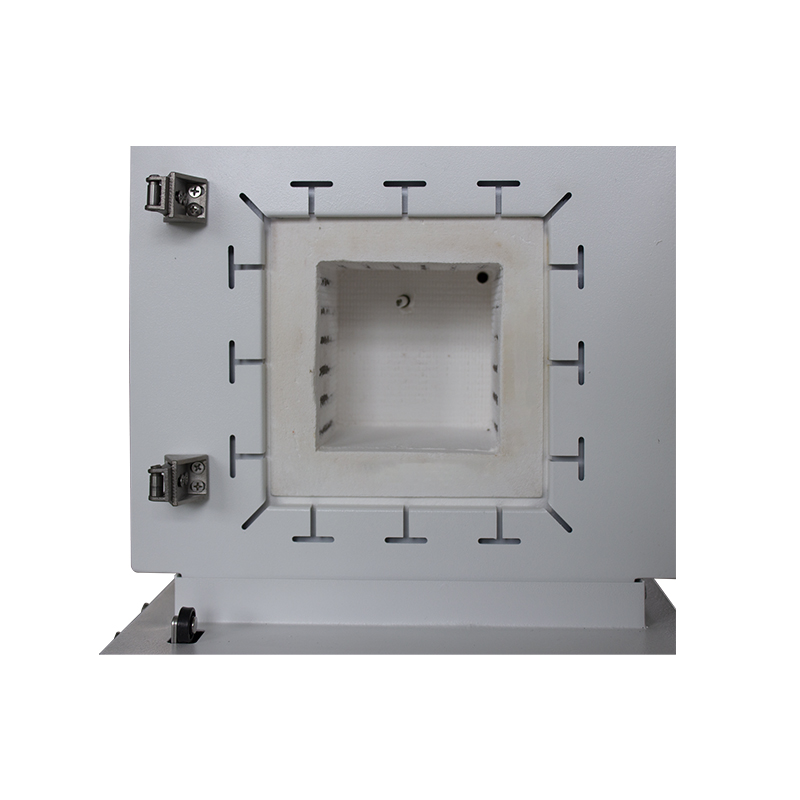

The furnace is made of high quality polycrystalline mullet fiber, and several HDR high quality resistance alloy wires are embedded in the furnace
Open the door to stop heating, over temperature automatically stop, leakage automatic power off
accessories: mat brick,crucible plier,golves
Model | MFLA-111 | MFLA-221 | MFLA-321 | MFLA-322 | MFLA-433 | MFLA-544 |
Temp.range And resolution | 50-1200℃,Max temp.:≤1200℃,working temp.:≤1100℃ <1000±0.1℃, ≥1000±1℃ | |||||
Temp.performance | Fluctuation:±1℃, uniformity: ±3℃ | |||||
Temp.up rate | At 1000℃ or less ≤10℃/min, no overpass 30℃/min | |||||
Temp.down rate | At 700℃ or more ≤10℃/min | |||||
Structure | cold-rolled steel outside,drug resistant painted Ceramic fiber chamber inside K type temperature couple, axial fan. HDR resistance alloy wire heater Double layers structure, equipped with air cooling system | |||||
Control system | Digital PID control,fixed running or programmable Bias correction,outage compensation,lock function Timer:1-99hour59min or 1-999hours | |||||
Safety | Cut off automatically when open the door Over temperature alarm Leakage protection | |||||
Voltage | AC220V 50Hz | AC380V 50Hz | ||||
Chamber size (D*W*H) | 100*100*100 | 200*120*80 | 300*200*120 | 300*200*200 | 400*300*300 | 500*400*400 |
Exterior size (D*W*H) | 330*300*475 | 430*350*520 | 530*450*530 | 530*450*675 | 670*570*820 | 800*700*1000 |
Weight (kg) | 20 | 25 | 47 | 50 | 89 | 150 |
Volume (L) | 1 | 1.92 | 7.2 | 12 | 36 | 80 |
Power (KW) | 1 | 2.5 | 3 | 4 | 6 | 15 |
